Creating a New Layout

Example

In this example you need to create a new layout for the Upstairs Coffee House. You do this by copying the DAY layout to a new WEEKEND layout.



  1. Go to LS Hospitality > Point of Sales > POS > Dining Area Profiles.
  2. Double click on S0010-RESTAURANT.
  3. Select the Day layout and click Dining Area Layout.
  4. Click Copy Layout on the function banner.

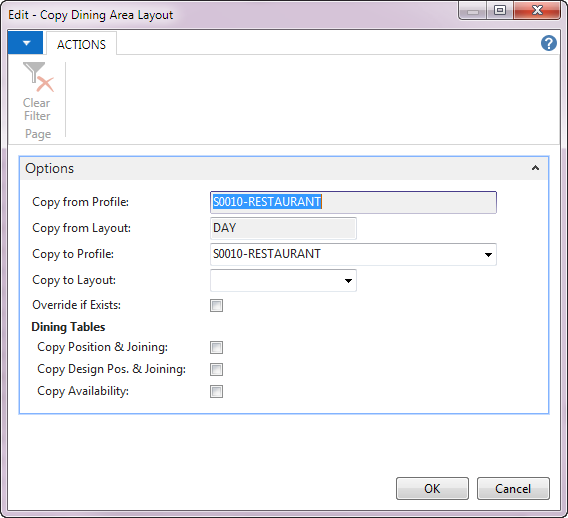

  5. Enter ‘WEEKEND’ in the Copy to Layout field:





  1. Click in the fields under Dining Tables.
  2. Click OK to run the batch job.

Designing the New Layout

  1. Go to LS Hospitality > Point of Sales > POS > Retail Users.
  2. Select store S0010 and POS terminal P0019.
  3. Click Run Client.
  4. Press Logon and logon with staff 1001.

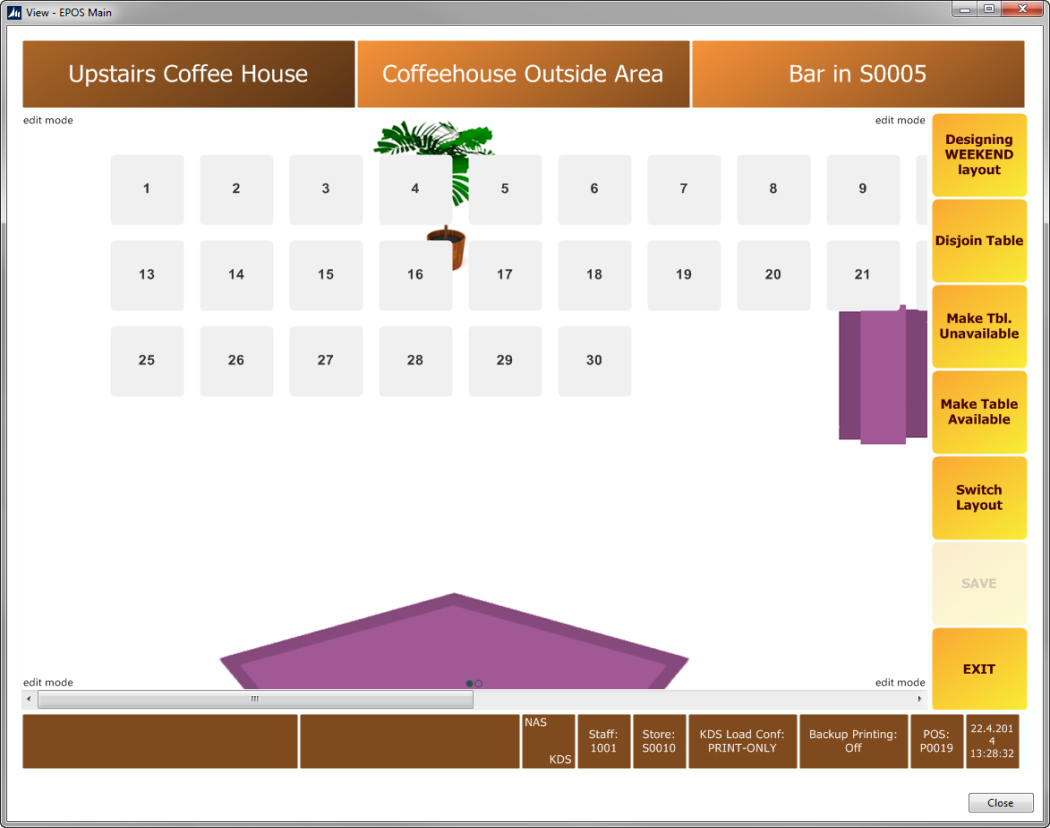

  5. Press Design Tables.

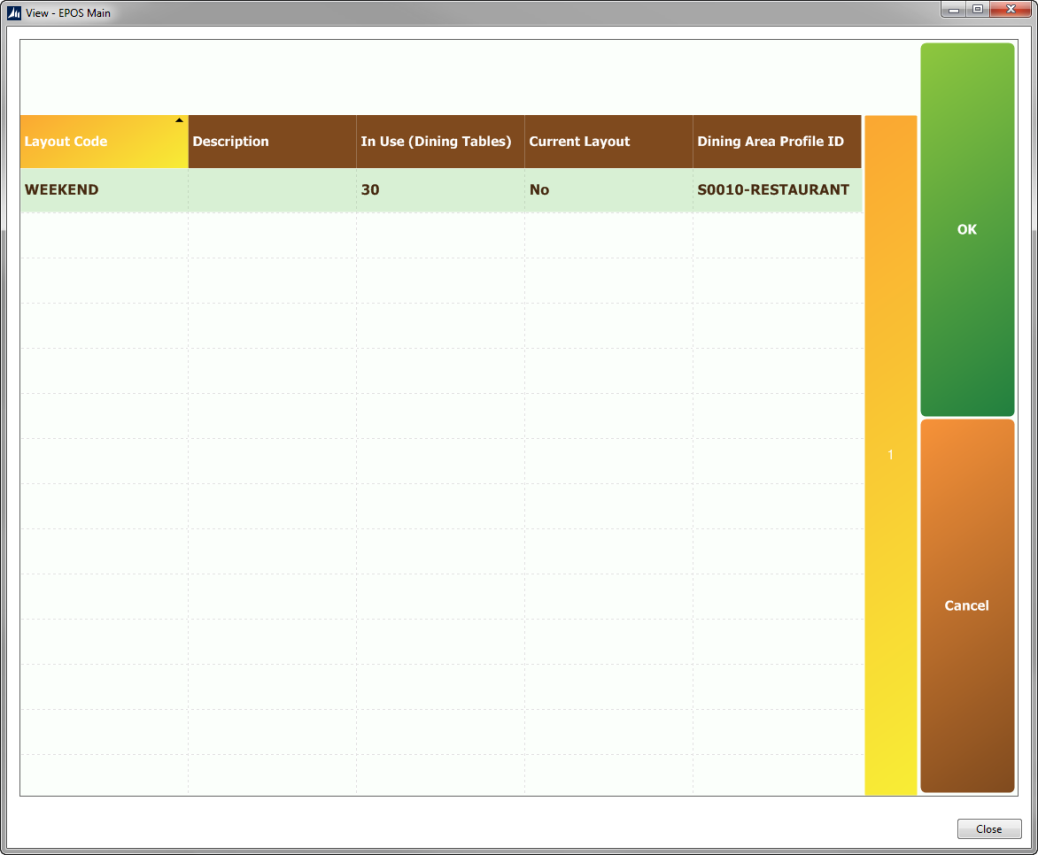

  6. Press Switch Layout. The lookup window shows other layouts than the current one:





  1. Select the Weekend layout and press OK:

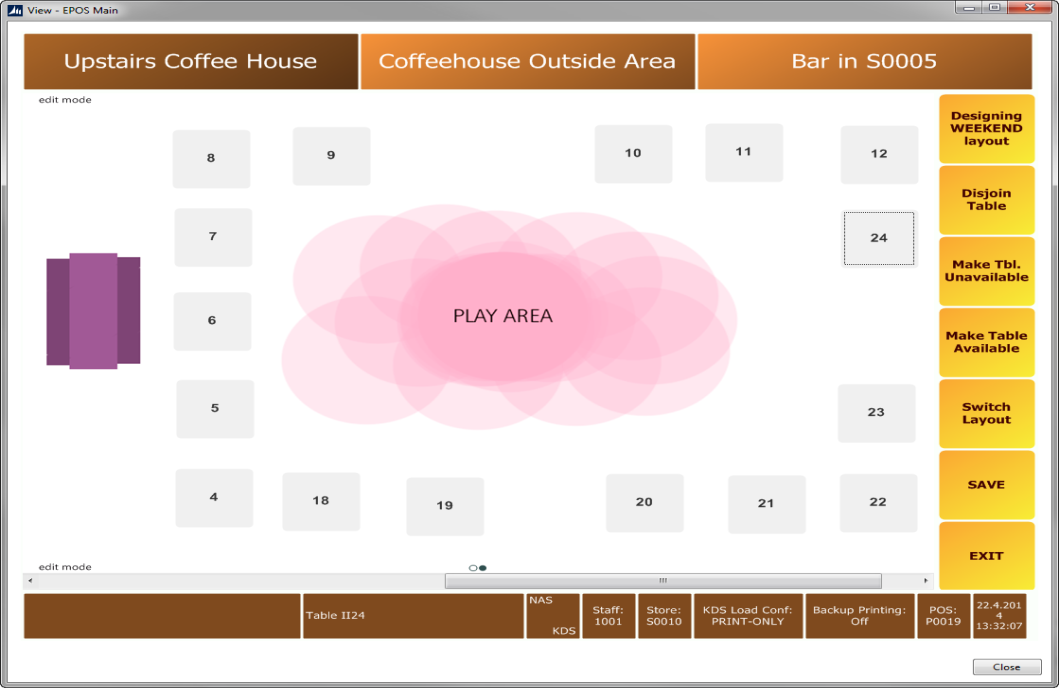

  1. Move the tables as shown in the following image and press SAVE:
