KOTs

KOTs include information about the Kitchen Order Ticket, KOT, as they were created in the Hospitality POS.

The KDS system has a number series for the KOT orders, KOT Numbers. This number is given to every order sent to the KDS system. The KDS system works with this KOT number; displaying it on its displays.

In the Sales POS, the POS commands KITCHEN_MYKOTS and KITCHEN_ORDERSTATUS list kitchen orders by this same number as well.

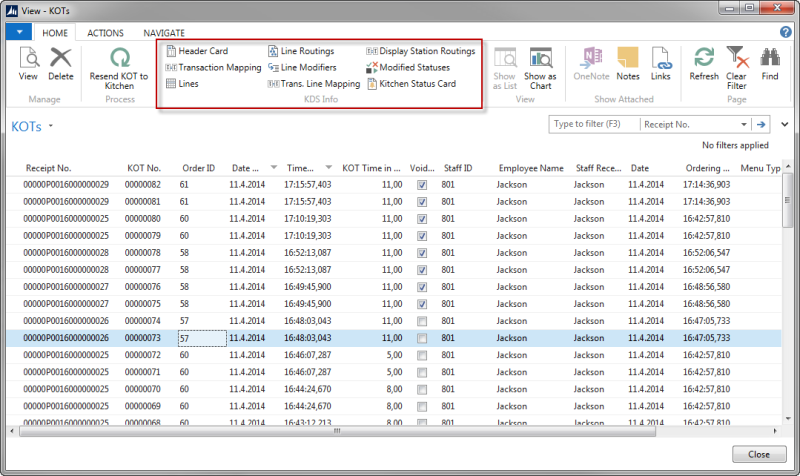

To view information on the KOTs created go to LS Hospitality, Kitchen Display System, Overview, KOTs:

For each KOT is possible to view more data.

Use the action menu and select the options to view.



Lines

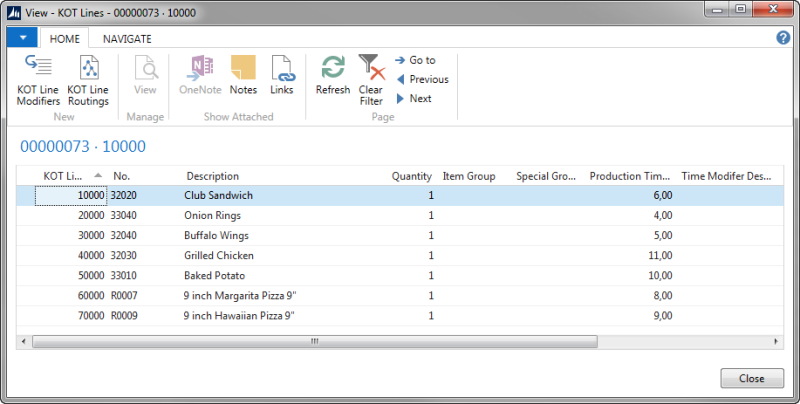

KOT Lines include order lines which are sent to the KDS system.

Note: An order can include 4 lines and only 2 of them are items with KDS routing data. Only order lines which have items with production sections connected to display station can become KOT lines.




Line Routings

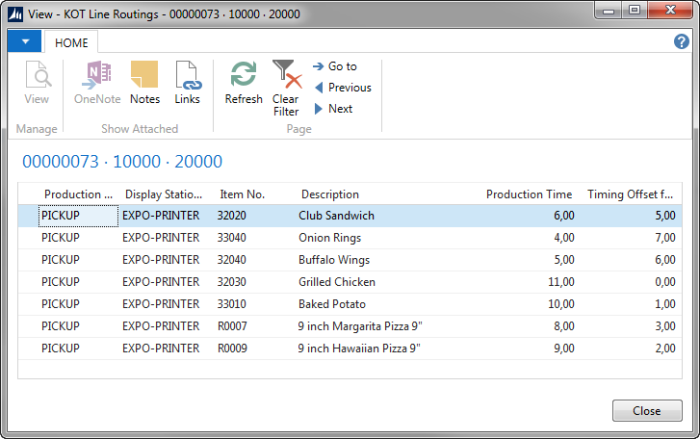

KOT Line Routings include all the KDS Line routings for the KOT lines. One item in the order can be sent to more than one display station:



Line Modifiers

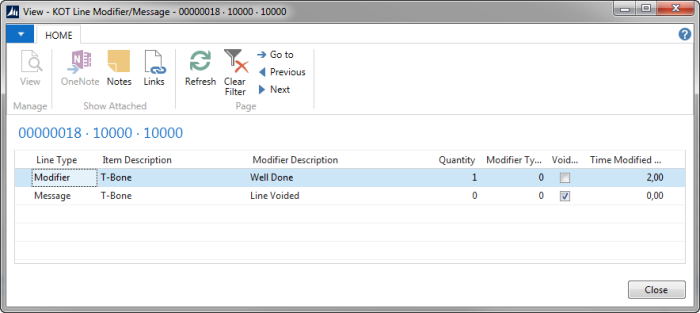

In KOT Line Modifiers all the modifiers for the KOT are displayed:



Display Station Routings

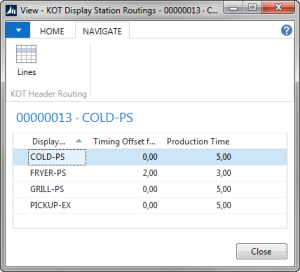

In KOT Display Station Routings all display stations for the selected KOT are displayed with Production time and Timing Offset for the order:



Modified Statuses

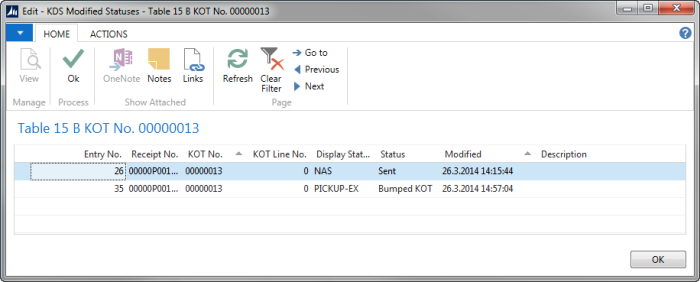

KDS Modified Statuses gives an overview for the selected KOT in what has been done with the KOT/KOT Lines in the display stations:



Function Resend KOT to Kitchen

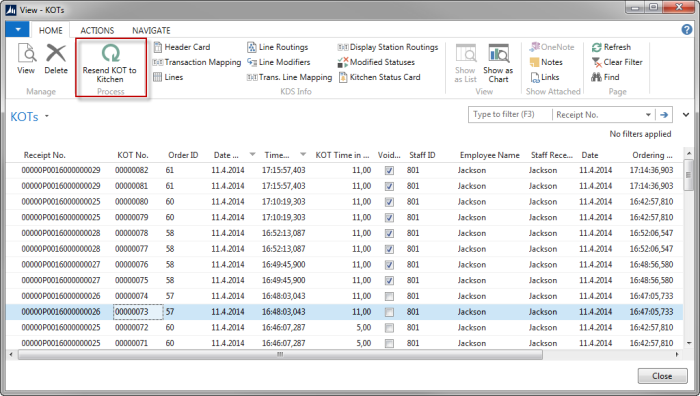

In KOTs there is an option to resend a KOT to the KDS system. If the KOT is for a printer station, the slip is printed again, with a * symbol in front of items that have already been printed.

To resend a KOT to the KDS system:

  1. Go to LS Hospitality > Kitchen Display System > Overview > KOTs
  2. Select the order which is going to be resent
  3. Select the option Resend KOT to Kitchen

Note: It is possible to select many KOTs and resend them to the KDS system in one go.
